Digital Veterinary Microscope

Contact us with your requirements

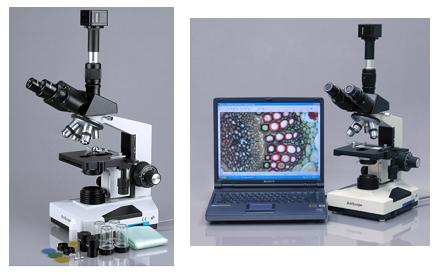

Clinic Veterinary Laboratory Trinocular Microscope

Key Features:

Simul-focal trinocular head boasting three unique features

-simultaneous view clear images through trinocular port and eyepieces

-adjustable simul-focal trinocular port

- industry standard 23mm photo port and C-mount port

3D double-layer mechanical stage with Abbe condenser and iris diaphragm

Sturdy metal framework and coaxial coarse & fine focusing

Description:

The MIG-490B features a unique "simul-focal" optical system with an adjustable trinocular port

to enable well-focused clear images on your PC or video screen while simultaneously obtaining

sharp, focused images through the eyepieces. Most trinocular microscopes allow you to view

either through the trinocular port or the eyepieces only, forcing you to switch between the two.

Since these trinocular ports are not "simul-focal" with the rest of the microscope optical system,

you have to re-focus the microscope after each switch. TheMIG-490B, however, erases this step

by providing "simul-focal" viewing. Especially handy for teaching demonstrations, clinical

examinations and laboratory applications, the "simul-focal" feature allows your students or

colleagues to view clear images simultaneously while you work through the eyepieces. In

addition, theMIG-490B's industry standard 23mm photo port can be converted into a C-Mount

port by attaching the included C-mount adapter, allowing you to attach most microscope digital

cameras and video systems on the market.

TheMIG-490B includes a 30-degree inclined 360-degree swiveling, compensation-free trinocular

head, a 3-D mechanical stage, and an intensity-variable halogen illumination system. This

versatile microscope is also capable of being upgraded with various accessories and attachments

listed in the optional section for additional functions. It is a perfect laboratory instrument for

clinics, Vets, Doctors, and professional students. Made by the same OEM supplier that provides

optical instruments for Leica, Zeiss, Nikon andOlympus.

Features:

"Simul-focal" Optical System Allows Simultaneous Viewing Through the Photo Port and
Eyepieces
AdjustableSimul-focalTrinocularPort
Industry Standard 23mmPhotoPortand C-mount Port
30-Degree Inclined, 360-Degree Swiveling Compensation Free TrinocularHead
Photo/Video Capability with Adjustable 23mm Photo Mount for "Simul-Focal" Image
System
Large 3-D Double Layer Mechanical Stage with Stain Resistant Finish
Low-Position Coaxial Stage Movement Control Knobs
Coaxial Coarse & Fine Focusing with CA Knob Tension Control
Fully Coated Optical System with High Resolution
Eight Magnification Settings: 40X-80X-100X-200X-400X-800X-1000X-2000X
Upward Stage Stopper to Protect Slides and Objectives
Abbe Condenser with Iris Diaphragm & Filters
Rack and Pinion Adjustment for Condenser
Built-in Halogen Illumination System with Variable Intensity
Dual Focusing Control Knobs
Full Optical Glass Elements
Precise Ground Glass Lenses
All Metal Mechanical Components.
Adjustable Interpupillary Distance
Adjustable Diopter on Ocular
Solid Metal Frame Construction with Stain Resistant Enamel Finish
CE and GS Approvals
Excellent Five (5) Year Factory Warranty

Specifications:

Nosepiece: quadruple
Mechanical Tube Length: 6-5/16" (160mm)
Head: 360-degree swiveling compensation free trinocular head inclined at 30-degree
Eyepieces: WF10X and P20X
Achromatic Objectives: 4X, 10X, 40X (spring), 100X (spring, oil)
Stage Dimensions: 5-1/2"x 5-1/2" (140x140mm)
Stage Traveling Range: 2-15/16"x 1-3/4" (75x45mm)
Focusing Range: 1-3/16" (30mm)
Division of Fine Focusing: 0.0000787" (0.002mm)
Abbe Condenser: NA=1.25 with rack and pinion focusing control
Illumination: 6V/20W halogen bulb
Power Supply: 110V (220V version available), CE & GS certified
Accessories: 6V/20W spare halogen bulb, bottle of immersion oil, blue, green & yellow
filters
Microscope Dimensions: 12" x 9" x 16"
Weight: 20 lbs

Packing List:

One Trinocular Compensation-Free Head with 23mm AdjustablePhotoPortand C-Mount
Adapter
One Microscope Body with Frame, Base and Halogen Illumination System
Four High QualityDINObjectives, 4X, 10X, 40X and 100X
Two Pairs of Widefield Eyepieces, WF10X and WF20X
Three Color Filters
One Dust Cover
One Power Cord
One 6V/20W Spare Halogen Bulb
One Spare Fuse
Immersion Oil
User's Manual

Optional Accessories:

Optional WF10X Eyepiece with Reticle for measurement
Optional WF16X Eyepiece for the Extra Magnification Powers: 64X, 160X, 640X & 1600X
Optional 20XDINObjective for Extra Magnification Setting: 200X
Optional 60XDINObjective for Extra Magnification Settings: 600X & 120X
Optional 640x480 PixelUSB2.0 Digital Camera for PC Display
Optional 1.3MPUSB2.0 Digital Camera for PC Display
Optional 3.0MPUSB2.0 Digital Camera for PC Display
Optional 5.0MPUSB2.0 Digital Camera for PC Display
Optional 8.0MPUSB2.0 Digital Camera for PC Display
Optional 9.1MPUSB2.0 Digital Camera for PC Display
Optional 10.7MPUSB2.0 Digital Camera for PC Display
Optional 10.7MPUSB2.0 Digital Camera Compatible with Mac OS10 for Apple Computer
Display
Optional CCD Camera for TV Display
Optional Dry Darkfield Condenser
Optional Oil Darkfield Condenser
Optional Phase ContrastKit
Optional Turret Brightfield & Darkfield Phase ContrastKit
Optional Temperature Control Stage Warmer
Optional Blank Slides & Coverslips
Optional Prepared Slide Sets
Optional Halogen Illuminating Bulb
Optional Aluminum Carrying Case
Optional Hard Wood Storage Case

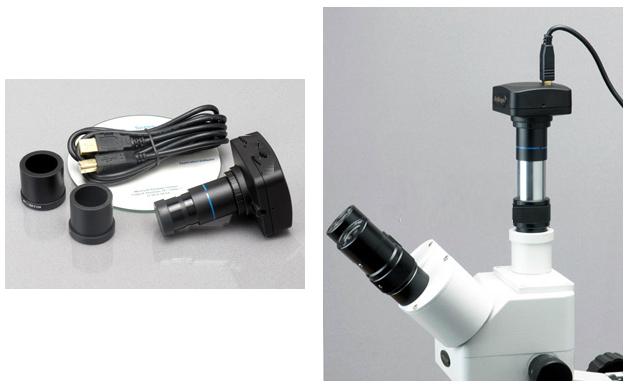

3MP USB2.0 Microscope Digital Camera + Software

Model MIG-300

Key Features:

This NEWEST GENERATION camera guarantees your satisfaction
Capturing 3.0M (2048x1536) pixel high quality still images
Streaming real-time live videos on your PC screen
Advanced editing, processing, and measuring software
Compatible with Windows XP/Vista/7 (32 & 64 bits)
Fitting 4 mounting sizes: 23mm, 30mm, 30.5mm, and C-mount

Description:

Our latest generation of MU cameras features upgraded electronics, streamlined software, and a compact design with smaller dimensions and reduced weight. Our company is located in the USAand all cameras come with a 1-YEAR WARRANTY!

Featuring built-in C-mount compatibility and 23mm reduction lens adapter, our camera can be attached to any instrument with a C-mount or a 23mm photo port, including microscopes, telescopes, endoscopes, and etc. The cameras optics offers 2048x1536 pixel resolution, and the included software allows you to capture real-time, high-definition videos and stills without requiring any additional equipment.

The included user-friendly software allows you to make notes, shapes, watermarks, and measurements with ease. You can analyze, present, and share images of samples and specimen by simply plugging one end into your PC's USB 2.0 port, and the other on your microscope's eye-tube or trinocular port.

In addition, the newest generation of MU camera comes with a preassembled 0.5X reduction lens, giving your PC screens the same field of view as your microscopes eyepiece. With the reduction lens in place, your camera tube is 23mm in diameter, making it compatible with pretty much any microscopes eye tube or trinocular port! We also include 2 eyepiece adapters for FREE 30.0mm and 30.5mm.

With its unique stand alone design, the MU series camera is equipped with CMOS color sensor, and comes with a high-speed USB 2.0 cord, advanced software (Windows XP/Vista/7 compatible), 4 mounting sizes (23mm, 30mm, 30.5mm, and C-mount), and instructions.

We are based in the USA and all our cameras come with a 1-year full-coverage warranty and a life-time of free software upgrades.

Camera Specifications:

Model	MU300
Effective Pixel	3,146K
Resolution	2048x1536 , 1024 x768 or680 x 510
Frame Rate	10 fps @2048x1536pixel 22 fps @ 1024 x768 pixel 44 fps @ 680 x 510 pixel
Sensor Type	MT9T001
Scan Mode	Progressive
Sensor Size	6.550mm (H) x 4.920mm (V) 8.190mm (diagonal)
Optical Format	1/2-inch (4:3)
Pixel Size	3.20um x 3.20um
Sensitivity	>1.0V/lux-sec(550nm)
DynamicRange	60.1 dB
SN Ratio	43 dB
Color Mode	Color/Gray Scale
Exposure Control	Mode: ROI auto exposure/manual exposure Range(ms)0.128~2000.000
Power Supply	ViaUSB2.0
Operating Temperature	-20 ~ 60(C)
Operating Systems Compatible with	Windows XP, Vistaor Windows 7 (32 & 64 bits) CPU: Intel Pentium 4, 2.6G or above RAM: 512 MB HDD: 10 GB USB:USB2.0 interface
Remarks	Actual frame rates on yourcomputer depend on the hardware and operating system used

Software Features:

Main Functions	Viewing live images; Streaming & recording live videos; Capturing & saving still images; Making measurements
Processing	-Edits images in a similar manner to PhotoShop -Captures images, records videos and saves in JPG, TIF, GIF, PSD, WMF, and BMP formats -Add layers, watermarks, mosaics, tiles, ... -Adjust color balance, exposure, saturation, contrast, orientation, ... -Change resolution, histogram, granulation, diffusion, ... -Transform images via edge detection, digital image warping, ...
Measurement	Measures length and angle; rectangular, elliptical and irregular areas; single, parallel and perpendicular lines; ...
Notation	Adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors
Calibration	Makes measurements in microns, millimeters, centimeters, inches, feet, and etc. at all magnification settings with desired tolerances

Operating System Compatibility:

COMPUTER OPERATING SYSTEM	COMPATIBILITY
Windows XP	Yes
Windows Vista (32 & 64 bits)	Yes
Windows 7 (32 & 64 bits)	Yes
Mac OS	Can be used with Parallels Desktop or VMware, requires license for MS Windows

Driver Characteristics:

White Balance	ROI auto white balance/temp-tint manual white balance
Black Level Calibration	Adaptive black level calibration
Stuck or Hot Pixel	Hardware remove technique
USBController Compatibility	Automatic detection of adaptation
Interfaces Supported	DirectShow/TWAIN
Operation Systems	Compatible with Windows XP/Vista /Win 7 (32 & 64 bits)

Packing List:

One 3MP Digital Camera
One 6' (1.8m)USBCable
Two Adapters
One One CD with Software and User's Instructions
Shipping Weight: 4 lbs
