M&I Globaltech, Inc. - Anesthesia Machine

Email: sales@miglobaltech.com Phone: 1-800-631-8915

Anesthesia Machine

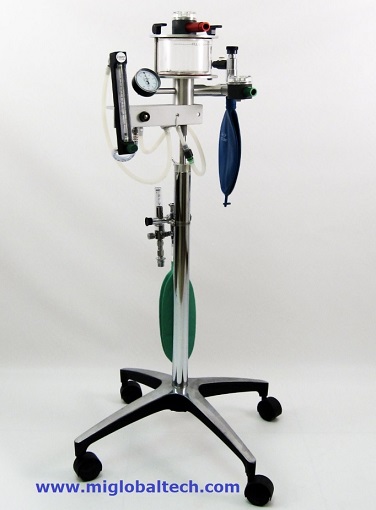

Small Animal Anesthesia Machine MIG-110

With innovative design allows for a simple, safe and controlled delivery of anesthetic agents while providing a unit which is completely field serviceable by your clinic staff.

We also offers a 3T MRI compatible option for the MIG-110 Small Animal Anesthesia Machine.

MIG-110 Small Anesthesia Machine Includes:

MIG-110 Small Anesthesia Machine with 5Wheel Base With Post Base With Post and Casters, 0-4LPM Oxygen Flow Meter, Oxygen Flush Mechanism, Absorber with Rubber Goods, F-Circuit plus a 2L Bag.
Vaporizer, Isoflurane TEC-III
High Pressure hose for Oxygen 15' with Quick Connect Circuit, Non Rebreathing - Safe Sigh
0-40cm/h2o disposable manometer, 22mm inlet/outlet connections
Bag, Breathing, Neoprene. Options: 500cc Bag, 1 liter Bag, 3 Liter 4 Liter Bag, 5 Liter Bag
Filtered Air Activated Charcoal System complete with 8 pack of filters, hose and bracket
Valve, Occlusion

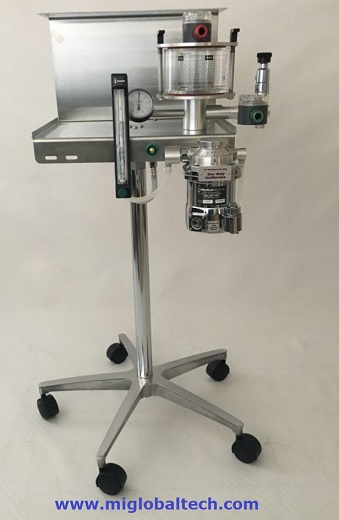

Small Animal Anesthesia Machine MIG-110X

The MIG-110X brings you the latest technology for the delivery of anesthesia for the Veterinary Profession. Our innovative design allows for a simple, safe and controlled delivery of anesthetic agents while providing a unit which is completely field serviceable by your clinic staff

MIG-110X Small Anesthesia Machine Includes:

MIG-110X Small Anesthesia Machine with 5 leg stand with casters, stainless steel utility and monitor shelf, 0-4LPM Oxygen Flow Meter, Oxygen Flush Mechanism, Absorber with Rubber Goods, F-Circuit plus a 2L Bag Tec3 ISOFLURANE vaporizer and scavenger adapter with hose
Vaporizer, Isoflurane TEC-III
High Pressure hose for Oxygen 15' with Quick Connect
Circuit, Non Rebreathing - Safe Sigh
0-40cm/h2o disposable manometer, 22mm inlet/outlet connections
Bag, Breathing, Neoprene. Options: 500cc Bag, 1 liter Bag, 3 Liter 4 Liter Bag, 5 Liter
Filtered Air Activated Charcoal System complete with 8 pack of filters, hose and bracket
Valve, Occlusion

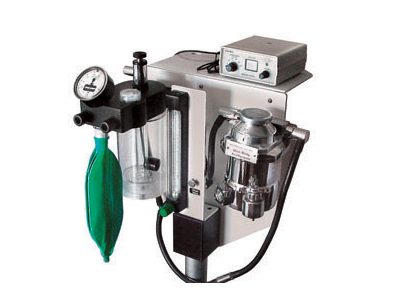

Small Animal Anesthesia Machine MIG-559

Performance for a high standard of care with economy of initial investment.

Precise machined fittings for an airtight connection.
Powder coat finish is attractive and easy to clean.
Available in mobile stand or table top models.
Protected, enclosed flowmeter with 200cc-4Lpm setting.
Will accept most precision vaporizers.
Integrated 02 flush valve set at 15Lpm.
Soda lime canister is protect by its location under block.
Smaller size, 970cc, versus standard 1300cc.
Also quick turn knob for each change of exhausted soda lime.
Includes two anesthesia circuits, universal "F" circuit and non-breathing circuit.
Manometer pressure gauge for proper bagging of animal.
Pop-Off valve attaches to a standard scavenger unit.
Table Top unit may be used on any flat surface and swivels in various positions.
Additional options and configurations are available.

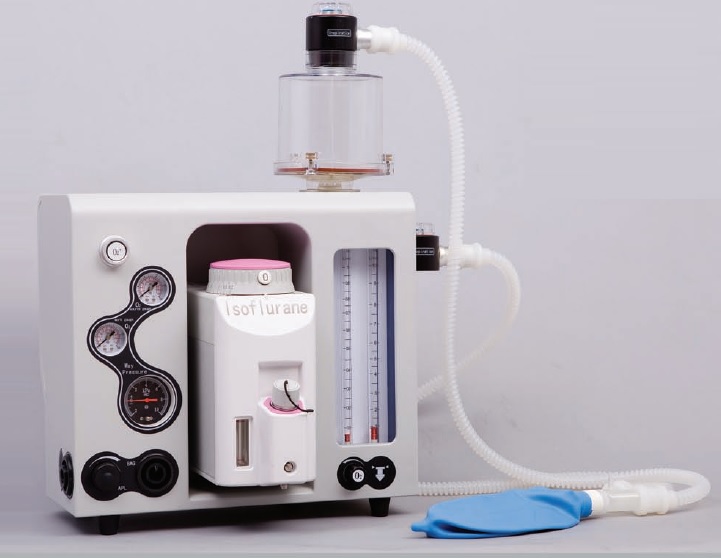

Small Animal Anesthesia Machine MIG-8902

Module rack with polyester medical material, high strength and light weight
Superior thin spray technology, delicate color, beautiful and durable
High precious vaporizer: Isoflurane and Sevoflurane could be choosed freely
Main unit are only 2kg(w/o vaporizer), light weight and easy to move
With a dedicated handle, could move by hand-pull
Two gas source: O2 suitable for more patient type

Technical Specification
Closed, semi-closed, semi-open
Application: 2-100kg animal
Gas source: O2 0.25Mpa-0.65Mpa
Two-tube(O2)： Scope0-10L/min， with linkage device， O2 concentration not low than 25%
Respiratory mode: Manual, Oxygen
TV: 50-2000ML
I:E: according to the doctor operation
BPM: according to the doctor operation
APL Valve pressure: 0.5-6KPa
Monitoring: Airway pressure, respiratory mode
Three Gauges: two for O2, one for airway pressure

Size: 380mm(W) X 360mm(H) X 180mm(L).

Weight: 8.5kg
