Digital Palm Handheld Ultrasound

Main Features:

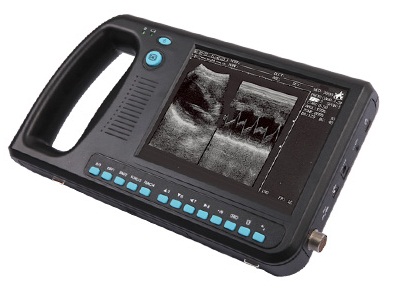

DIGITAL Palm Handheld Ultrasound  3000V /MIG-1830V is the latest model, weighting only 1.3KG,is distinguishable by its bright and clear image quality. The interchangeable probes offer a wide range of diagnostic applications.This scanner is a cost effective solution for veterinary scanning.The complete software and the high product versatility are available in it.

Technical Specification :
·Scanning Method: Convex, Micro-convex,  Linear,  rectal
·Display Mode: B, B+B, B+M, 4B
·Gray Scale: 256 levels
·Monitor: 7.0 inch TFT color LCD

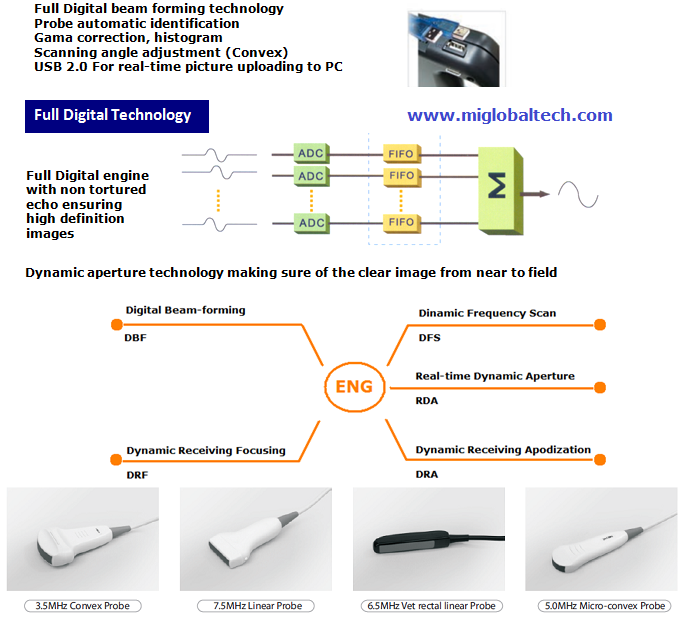

·Image Procession: DFS, DRF, RDA, VGA/DSC and Image Post Procession
·Cine loop ≥400 Frame
·64 image permanent storage
·Image magnification: ×1.0, ×1.2, ×1.5, ×2.0 times
·4 focusing combination selectable
·4 different coded-color available
·16 difference kinds of body marks with difference calipers.
·Measurement in Distance, Circumference/Area, Time/Heart Rate/EF rate for heart, and GS, CRL, BPD, HC, FL, AC for OB/GY measurement, and Gestational Age, Fetal weight, EDD calculation.
·Characteristic in real-time clock, ID, Sex, Age, Focusing Info and Gain(Near, Far,Overall) info.
·PAL-D output
·Mouse interface

This Ultrasound has internal battery (3 hours), USB port, video port.
Probe: L60/6.5MHz rectal linear

Standard configuration: main unit + 6.5MHz Multifrequency rectal linear probe, carrying case.

Options:

• R40/3.5MHz Multifrequency convex probe
• R20/5.0MHz Multifrequency micro-convex probe
• L40/7.5MHz Multifrequency linear probe

                                                                                             Contact us for more information
